Building Automation & Controls

BLE Wireless Remote

Allure UNIWAVE

UNIWAVE is a new range of wireless interfaces with a contemporary design allowing occupants to manage all the comfort settings for a room. These products are available in a remote-control version for control directly from your desk or as a wireless wall-mounted sensor which is particularly suitable for areas where wiring is impossible or retrofit projects.

Features:

• Communicates with the EC-Multi-Sensor-BLE via Bluetooth® low energy technology (BLE).
• Available as a wall-mounted device for simplified installation; no wiring
• Available as a remote control for mobile control
• Contemporary design
• Intuitive interface
  • Predefined scenarios can be activated
  • Interface can be adapted to the room's applications (HVAC, blinds, lighting) via EC-gfxProgram
  • Screen designed for easy readability
• Long battery life
• Wall-mounted temperature sensor with optional humidity sensor
• Compatible with the Smart Room Control solution
• Available in black or white

BLE Touchscreen Sensor

Allure UNITOUCH

This cutting-edge touchscreen sensor enhances occupant experience with its inviting user interface and modernises the BMS room device portfolio with its contemporary design. The Allure UNITOUCH can be used for a wide range of HVAC, lighting, and sunblind applications, making it an ideal all-in-one addition to Distech Controls’ Smart Room Control solution. Its 3.5”, high-resolution capacitive touchscreen is easy to view and simple to use, allowing for the control of these applications using a single device. Furthermore, this communicating sensor allows for the wireless control of comfort from a mobile phone by using Bluetooth® low energy technology. This product series includes different models, with a choice in sensing capabilities (temperature, humidity, CO2) and colour (black, white).

Features:

• Interfaces with Distech Controls’ ECLYPSE^TM controllers
• Capacitive glass touchscreen
• LCD colour display
• Customisable with EC-gfxProgram
• Options with humidity and CO₂ sensors
• Available in black or white

Communicating Sensor with Display

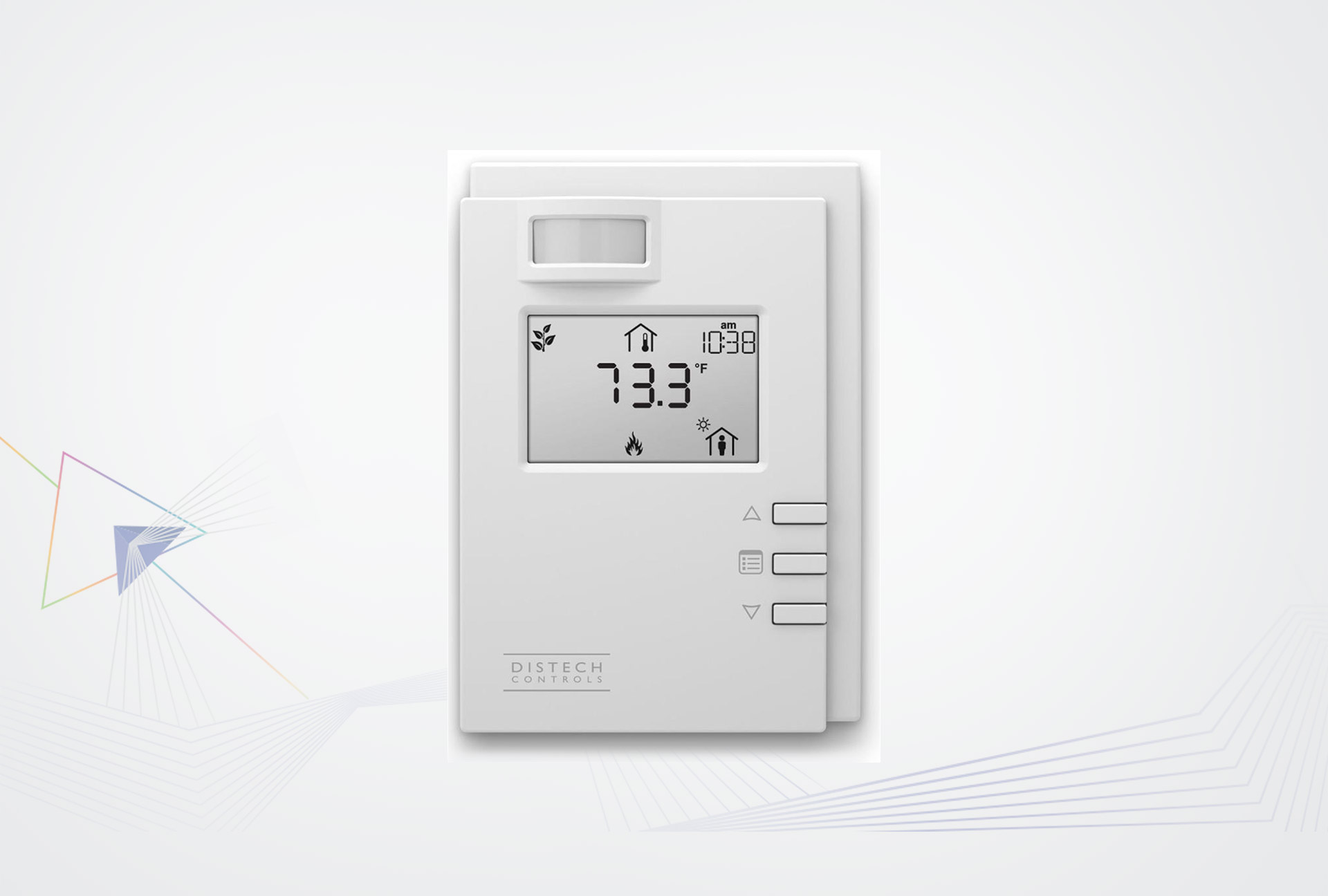

Allure EC-Smart-Vue

Advanced communicating sensor with four integrated sensors: temperature, humidity, CO2 and motion. Features innovative ECO-Vue™ leaf pattern.

• Communicating sensor for VAV, fan coil, roof top, heat pump, unit ventilator, and room control applications
• For use with Distech Controls ECB series BACnet series, ECL series LONWORKS , and ECY ECLYPSE Connected BACnet/IP and Wi-Fi controllers
• Models available with up to four integrated sensors: temperature, humidity, CO₂ and motion supports demand-controlled ventilation and occupancy-based control strategies for additional energy savings
• Backlit LCD display and icon-driven menu
• Innovative ECO-Vue™ feature graphically indicates energy consumption in real time to promote energy-conscious behavior
• Can be used as a handheld tool with air balancing menus to perform VAV air flow balancing without the aid of an onsite building automation system control engineer
• Select and configure controller’s pre-loaded applications (for ECB-VAV, ECL-VAV, and ECY-VAV Series)
• Program, commission, and troubleshoot locally with built in network port providing access to the network
• Can be daisy-chained for applications where one controller is serving multiple rooms or large open spaces

Communicating sensors

Allure EC-Smart-Air

Discrete communicating sensor combining precise environmental sensing - temperature, humidity and CO₂ – ideal for applications requiring no occupant-driven overrides.

• For use with Distech Controls ECB BACnet series , ECL LONWORKS series and ECLYPSE series controllers
• Models available with up to three integrated sensors: temperature, humidity and CO₂
• For applications that require no occupant-driven overrides
• Can be daisy-chained for applications where one controller is serving multiple rooms or large open spaces

5-in-1 BLE Communicating Ceiling Sensor

EC-Multi-Sensor-BLE

The EC-Multi-Sensor-BLE is a compact, "5-in-1" communicating device. With just one wire and one connection, this device effectively combines (1) a motion detector, (2) a light sensor, (3) a temperature sensor, and (4) a Bluetooth® low energy technology transceiver for the wireless control of comfort from a mobile phone. The multi-sensor also offers open beacon technology allowing for (5) the connection with third party applications in order to offer additional innovative services and options such as IPS and much more.

Features:

• Combines three sensing capabilities (temperature, luminosity, and motion sensing) and Bluetooth low energy technology communication
• Can be directly connected to an ECLYPSE™ series controller or to its expansion module with a digital RJ-45 link or daisy-chained using an ECx-Subnet-Adapter
• Both power and communications pass through a single Cat 5e cable, reducing installation costs and simplifying installation and system retrofits
• Directly addressable via a rotary switch to facilitate configuration
• Optimizes energy usage according to real-time conditions, whether controlling heating and cooling setback through motion and temperature sensing or controlling lighting through occupancy detection.

4-in-1 Communicating Ceiling Sensor

EC-Multi-Sensor Series

The EC-Multi-Sensor Series combines a motion detector, a light sensor, a temperature sensor, and an infrared receiver in a single compact device.

• "4-in-1" communicating sensors - one wire, one connection, three (3) sensing capabilities (temperature, luminosity, and motion
  sensing) and infrared reception
• Optimize energy use according to the actual building’s conditions:
  • Control heating and cooling setback through motion sensing and temperature measurement
  • Control lighting through occupancy detection
• Compact style and discreet in-ceiling installation for optimized motion sensing performance
• Adjustable motion sensing sensitivity to fine tune presence detection
• Luminosity sensor features human-eye response for precise illuminance measurement under diverse lighting conditions
• Both power and communications pass through a single Cat 5e cable for reduced installation costs and for easier installation or system retrofit
• Daisy-chaining capabilities for maximum adjustment to the actual room characteristics (requires an ECx-Subnet-Adapter - not provided)
• Compatible with the EC-Remote Series for a user-friendly management of all the room comfort parameters
• Directly adressable via a rotary switch to facilitate configuration

Wireless Remote

EC-Remote Series

The EC-Remote Series remote controls allow users to remotely manage all the comfort parameters of a room: lighting, shades / sunblinds, temperature, fan speed and occupancy.

• HVAC, lighting and shades / sunblinds management from a single accessory
• Up to 8 lighting groups and 8 blinds groups handled simultaneously or separately
• Scheduling standard occupancy hours to optimize energy efficiency of the building while preserving occupancy comfort
• Different technologies available to suit new construction and retrofitting
