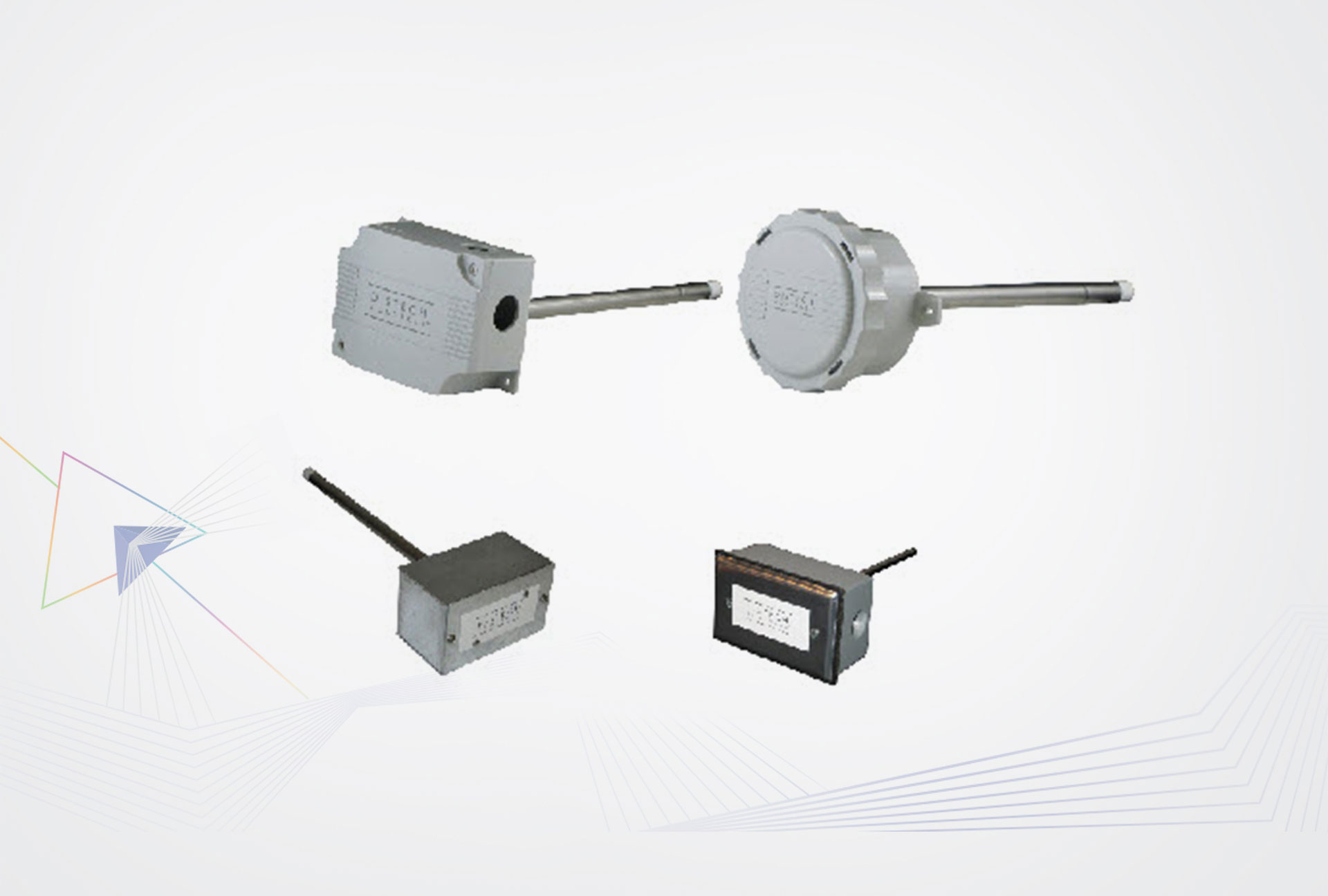

Duct Humidity and Temperature Transmitters, Nema 4X

HS-DT_2X Transmitter Series

The HS-DT_2X Transmitter Series are duct humidity and temperature transmitters. They use a highly accurate and reliable Thermoset-Polymer- based capacitance humidity sensor and a Platinum RTD temperature sensor along with state-of-the-art digital linearization and temperature compensated circuitry in order to monitor humidity levels. The sensor is encapsulated in a 228.60 mm (9”) long by 12.7 mm (0.5”) diameter S/S probe. A 60-micron HDPE filter protects against contaminants. Excellent long-term stability and quick response time combined with temperature compensation make the HS-DT_2X Series the ideal choice for the HVAC market. Models with RH accuracy of 2%, 3%, or 5% are available.

Duct Humidity Transmitters, Nema 4X

HS-D_2X Sensor Series

The HS-D_2X Series are duct humidity transmitters. They use a highly accurate and reliable Thermoset-Polymer-based capacitance humidity sensor, state-of-the-art digital linearization, and temperature compensated circuitry in order to monitor humidity levels. The sensing element is encapsulated in a 228.60 mm (9”) long by 12.7 mm (0.5”) diameter 304 S/S probe. A 60 micron HDPE filter protects against contaminants. Excellent long-term stability and quick response time combined with temperature compensation make the HS-D_2X Transmitter Series the ideal choice for the HVAC market. Models with accuracy of 2%, 3%, or 5% are available.

Greenhouse/Horticulture Sensor

HS-TH Series

The HS-TH Series Greenhouse/Horticulture sensor is designed for a greenhouse or indoor grow facility to monitor and allow control for optimum plant growing conditions.

Available in 2 models: Temperature & Humidity or Temperature, Humidity & Carbon Dioxide. The HS-TH Series utilizes a highly accurate and reliable dual-channel, nondispersive infrared (NDIR) sensor to monitor CO₂, a precision thermistor to monitor temperature and, a thermoset polymer based capacitance sensor to measure humidity levels.

Outside Air Humidity and Temperature Transmitters, Nema 4X

HS-OT_2X Series

The HS-OT_2X Series of relative humidity and temperature transmitters for outdoor air use a highly accurate and reliable Thermoset-Polymer-based capacitance humidity sensor and a Platinum RTD. By combining the sensors with state-of-the-art digital linearization and temperature compensated circuitry, humidity and temperature are intricately monitored. Excellent long-term stability and quick response time combined with temperature compensation make the HS-OT_2X Series the ideal choice for the HVAC market.

Outside Air Humidity Transmitters, Nema 4X

HS-O_2X Series

The HS-O_2X Series are relative humidity transmitters for outside air. They use a highly accurate and reliable Thermoset-Polymer-based capacitance humidity sensor along with state-of-the-art digital linearization and temperature compensated circuitry in order to monitor humidity levels. A 60-micron HDPE filter protects the sensor from contaminants. Excellent long-term stability and quick response time combined with temperature compensation make the HS-O_2X Series the ideal choice for the HVAC market. Models with RH accuracy of 2%, 3%, or 5% are available.

Room Humidity and Temperature Transmitters

HS-RT Series

The HS-R Series Humidity and Temperature Transmitter incorporates two sensors in one attractive wall mount enclosure for the most efficient environmental monitoring and control system. It uses a field-proven RH sensor to monitor relative humidity and a curve-matched thermistor to measure temperature and provides two analog outputs of either 4-20 mA, 0-5Vdc or 0-10 Vdc. Additional options include an occupancy override button, and an LCD display.

Room Humidity Sensors

HS-R Series

The HS-R Series are room humidity transmitters that use a highly accurate and field-proven RH sensor in a sleek, elegant, and low profile enclosure to monitor room relative humidity levels. Additional options include an LCD display. The RH output can be field selected as a linear 4-20 mA, 0-5 or 0-10 Vdc signal. This product offers a cost effective solution for customers who wish to have ease of installation to their Building Automation System.

Wall Plate Humidity Sensors

HS-RXXXMP Series

The HS-RXXXMP Series are stainless steel wall plate relative humidity transmitters. They use a field-proven capacitive type humidity sensor and microprocessor temperature compensation for reliable, accurate measurement of indoor humidity. The wall plate sensor is perfect for locations requiring periodic wipe down as it features a 304 stainless steel plate with a neoprene gasket. The sensor is protected by a 100 micron sintered stainless steel filter. The plate sensor is available with either 4-20 mA or 0-5 Vdc or 0-10 Vdc output signal types and the transmitter is located on the back of the plate for ease of installation.
